Tutorial 7: CP Motion

This part covers the following.

  1. Perform CPMotion of RobotMotion.

    • LineMotion

    • ArcMotion

    • SplineMotion

1. Sample Code

SampleCpLineMotionBaseFrame

int SampleCpLineMotionBaseFrame(wmx3Api::RobotMotion& robot, wmx3Api::RobotMotionParam& robotMotionParam)
{
    int ret = 0;
    wmx3Api::RobotStatus robotStatus;

    ret = robot.UpdateRobotStatus(robotMotionParam.robotParam.robotId, robotStatus);

    // Generate target pose
    wmx3Api::coordinate::CartesianPose targetPose(robotStatus.stateCommand.toolPose);
    targetPose.point.x += 100.0;
    targetPose.point.y += 0;
    targetPose.point.z += 0;

    // CP Line Motion Command(parameter, base frame)
    wmx3Api::TrajectoryMotionParam::TrajectoryLineMotionParam trajectoryParam(robotMotionParam.profile, targetPose);

    // Set CP Motion
    ret = robot.mKinematics.SetMotion(robotMotionParam.robotParam.robotId, trajectoryParam);

    // Start CP Motion
    ret = robot.mKinematics.StartMotion(robotMotionParam.robotParam.robotId);

    // Wait until motion finished
    ret = robot.mKinematics.Wait(robotMotionParam.robotParam.robotId);

    return ret;
}

  • Creates a CartesianPose class to specify the target coordinates/posture.

  • Creates a TrajectortyLineMotinoParam class to pass profile information and the target Pose.

  • Calls the SetMotion function to reserve a motion.

  • Calls the StartMotion function to execute the motion.

  • Calls the Wait function to wait until the motion is complete.

../_images/ROBOT_OPTION_DOC_TUTORIAL_MIMIC_CP_MOTION_01_LINE_MOTION_BASE_FRAME.png

SampleCpLineMotionToolFrame

int SampleCpLineMotionToolFrame(wmx3Api::RobotMotion& robot, wmx3Api::RobotMotionParam& robotMotionParam)
{
    int ret = 0;
    wmx3Api::RobotStatus robotStatus;

    ret = robot.UpdateRobotStatus(robotMotionParam.robotParam.robotId, robotStatus);

    // Generate target pose
    wmx3Api::coordinate::CartesianPose targetPose;
    targetPose.point = wmx3Api::coordinate::Point3d(0, 0, -200);
    targetPose.rotation;

    // CP Line Motion Command(parameter, tool frame)
    wmx3Api::TrajectoryMotionParam::TrajectoryLineMotionParam trajectoryParam(robotMotionParam.profile, targetPose, true);

    // Set CP Motion
    ret = robot.mKinematics.SetMotion(robotMotionParam.robotParam.robotId, trajectoryParam);

    // Start CP Motion
    ret = robot.mKinematics.StartMotion(robotMotionParam.robotParam.robotId);

    // Wait until motion finished
    ret = robot.mKinematics.Wait(robotMotionParam.robotParam.robotId);

    return ret;
}

  • Creates a CartesianPose class to specify the target coordinates/posture.

  • Creates a TrajectortyLineMotinoParam class to pass profile information and the target Pose.

    • The third argument (isToolFrame) indicates whether to use the tool coordinate system as a reference.

  • Calls the SetMotion function to reserve a motion.

  • Calls the StartMotion function to execute the motion.

  • Calls the Wait function to wait until the motion is complete.

../_images/ROBOT_OPTION_DOC_TUTORIAL_MIMIC_CP_MOTION_02_LINE_MOTION_TOOL_FRAME.png

SampleCpArcMotionType3Points

int SampleCpArcMotionType3Points(wmx3Api::RobotMotion& robot, wmx3Api::RobotMotionParam& robotMotionParam)
{
    int ret = 0;
    wmx3Api::RobotStatus robotStatus;

    // Update the Robot Status(Get the current pose)
    ret = robot.UpdateRobotStatus(robotMotionParam.robotParam.robotId, robotStatus);

    // Start Test Case
    double radius = 50.0;
    wmx3Api::coordinate::CartesianPose currentPose(robotStatus.stateCommand.toolPose);

    // CP Line Motion Command(parameter, base frame)
    wmx3Api::coordinate::CartesianPose targetPose(currentPose);
    targetPose.point.x += (2 * radius);

    wmx3Api::coordinate::CartesianPose throughPose(currentPose);
    throughPose.point.x += radius;
    throughPose.point.y += radius;

    wmx3Api::coordinate::PoseArray poseArray = wmx3Api::coordinate::PoseArray();
    poseArray.numPoints = 1;
    poseArray.poseArray = new wmx3Api::coordinate::CartesianPose[poseArray.numPoints];
    poseArray.poseArray[0] = throughPose;

    // Set CP Motion
    wmx3Api::TrajectoryMotionParam::TrajectoryArcMotionParam trajectoryParam(robotMotionParam.profile, targetPose);
    ret = robot.mKinematics.SetMotion(robotMotionParam.robotParam.robotId, trajectoryParam, poseArray);

    // Start CP Motion
    ret = robot.mKinematics.StartMotion(robotMotionParam.robotParam.robotId);

    // Wait until motion finished
    ret = robot.mKinematics.Wait(robotMotionParam.robotParam.robotId);

    // Release user-allocated memory
    delete[] poseArray.poseArray;

    return ret;
}

  • Performs Arc motion that passes through 3 points (current position, target position, via position).

  • The targetPose in the example above indicates the target Pose of the End effector.

  • The throughPose in the example above indicates the via Pose of the End effector.

  • Creates a TrajectoryArcMotionParam class to pass profile information and the target Pose.

  • Calls the SetMotion function to reserve a motion.

    • You can pass the via Pose in the form of a PoseArray class.

    • TrajectoryArcMotionParam refers to only the first element of PoseArray as the via Pose.

  • Calls the StartMotion function to execute the motion.

  • Calls the Wait function to wait until the motion is complete.

  • Releases the dynamically allocated memory.

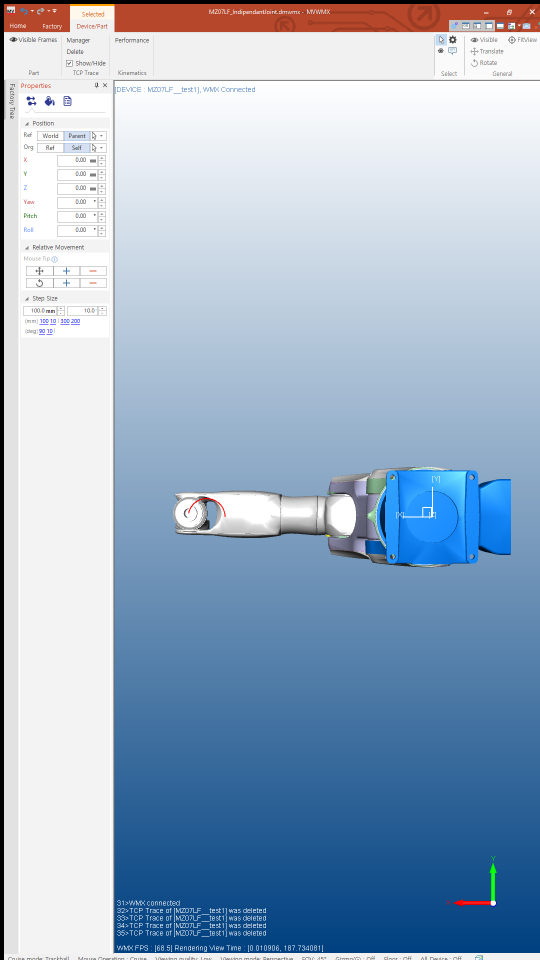

../_images/ROBOT_OPTION_DOC_TUTORIAL_MIMIC_CP_MOTION_03_ARC_MOTION_TYPE_3POINTS.png

SampleCpArcMotionTypePath

int SampleCpArcMotionTypePath(wmx3Api::RobotMotion& robot, wmx3Api::RobotMotionParam& robotMotionParam)
{
    int ret = 0;
    wmx3Api::RobotStatus robotStatus;

    // Update the Robot Status(Get the current pose)
    ret = robot.UpdateRobotStatus(robotMotionParam.robotParam.robotId, robotStatus);

    // Start Test Case
    wmx3Api::coordinate::CartesianPose currentPose(robotStatus.stateCommand.toolPose);
    //double rotAngle = wmx3Api::coordinate::Rotation::deg2rad(360);
    double rotAngle = 360;
    double radius = 50.0;

    // CP Line Motion Command(parameter, base frame)
    wmx3Api::coordinate::CartesianPose targetPose(currentPose);
    targetPose.point.x += (2 * radius);

    wmx3Api::coordinate::CartesianPose throughPose(currentPose);
    throughPose.point.x += radius;
    throughPose.point.y += radius;

    wmx3Api::coordinate::PoseArray poseArray = wmx3Api::coordinate::PoseArray();
    poseArray.numPoints = 1;
    poseArray.poseArray = new wmx3Api::coordinate::CartesianPose[poseArray.numPoints];
    poseArray.poseArray[0] = throughPose;

    // Set CP Motion
    wmx3Api::TrajectoryMotionParam::TrajectoryArcMotionParam trajectoryParam(robotMotionParam.profile, targetPose, rotAngle);
    ret = robot.mKinematics.SetMotion(robotMotionParam.robotParam.robotId, trajectoryParam, poseArray);

    // Start CP Motion
    ret = robot.mKinematics.StartMotion(robotMotionParam.robotParam.robotId);

    // Wait until motion finished
    ret = robot.mKinematics.Wait(robotMotionParam.robotParam.robotId);

    // Release user-allocated memory
    delete[] poseArray.poseArray;

    return ret;
}

  • Performs Arc motion that rotates by a specific angle based on 3 points (current position, target position, via position).

  • The targetPose in the example above indicates the (on-path) target Pose of the End effector.

  • The throughPose in the example above indicates the (on-path) via Pose of the End effector.

  • Creates a TrajectoryArcMotionParam class to pass profile information and the (on-path) target Pose.

  • Calls the SetMotion function to reserve a motion.

    • You can pass the via Pose in the form of a PoseArray class.

    • TrajectoryArcMotionParam refers to only the first element of PoseArray as the via Pose.

  • Calls the StartMotion function to execute the motion.

  • Calls the Wait function to wait until the motion is complete.

  • Releases the dynamically allocated memory.

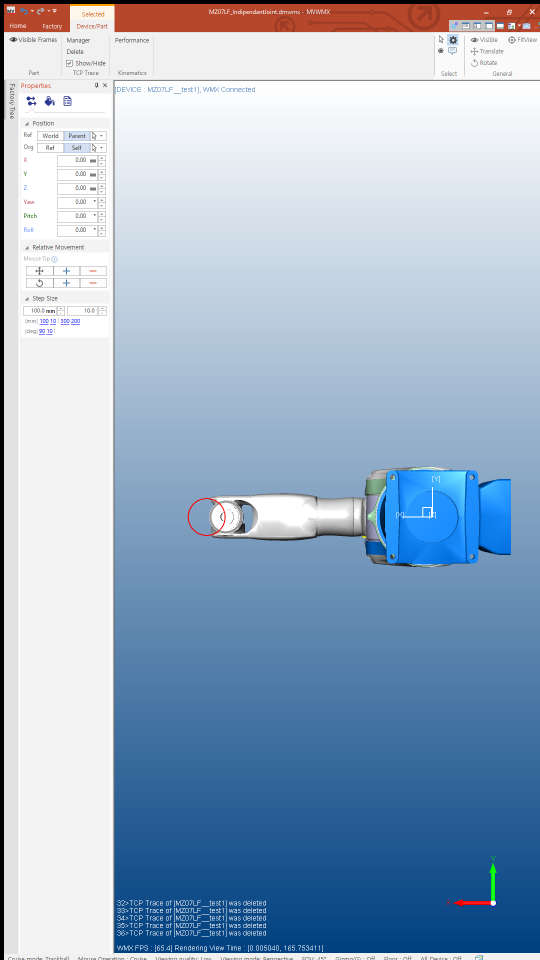

../_images/ROBOT_OPTION_DOC_TUTORIAL_MIMIC_CP_MOTION_04_ARC_MOTION_TYPE_PATH.png

SampleCpSplineBMotion

int SampleCpSplineBMotion(wmx3Api::RobotMotion& robot, wmx3Api::RobotMotionParam& robotMotionParam)
{
    int ret = 0;
    double distance = 50.0;
    wmx3Api::RobotStatus robotStatus;

    // Update the Robot Status(Get the current pose)
    ret = robot.UpdateRobotStatus(robotMotionParam.robotParam.robotId, robotStatus);

    wmx3Api::coordinate::PoseArray poseArray = wmx3Api::coordinate::PoseArray();
    poseArray.numPoints = 5;
    poseArray.poseArray = new wmx3Api::coordinate::CartesianPose[poseArray.numPoints];
    poseArray.poseArray[0] = wmx3Api::coordinate::CartesianPose(robotStatus.stateCommand.toolPose);
    poseArray.poseArray[1] = wmx3Api::coordinate::CartesianPose(poseArray.poseArray[0]);
    poseArray.poseArray[1].point.y += distance;
    poseArray.poseArray[2] = wmx3Api::coordinate::CartesianPose(poseArray.poseArray[1]);
    poseArray.poseArray[2].point.x += (2 * distance);
    poseArray.poseArray[3] = wmx3Api::coordinate::CartesianPose(poseArray.poseArray[2]);
    poseArray.poseArray[3].point.y -= (2 * distance);
    poseArray.poseArray[4] = wmx3Api::coordinate::CartesianPose(poseArray.poseArray[3]);
    poseArray.poseArray[4].point.x -= (2 * distance);

    // Set CP Motion
    wmx3Api::TrajectoryMotionParam::TrajectoryBSplineMotionParam trajectoryParam(robotMotionParam.profile);
    ret = robot.mKinematics.SetMotion(robotMotionParam.robotParam.robotId, trajectoryParam, poseArray);

    // Start CP Motion
    ret = robot.mKinematics.StartMotion(robotMotionParam.robotParam.robotId);

    // Wait until motion finished
    ret = robot.mKinematics.Wait(robotMotionParam.robotParam.robotId);

    // Release user-allocated memory
    delete[] poseArray.poseArray;

    return ret;
}

  • Performs a motion that smoothly connects multiple Poses.

    • It does not necessarily pass through the specified coordinates.

  • Creates a TrajectoryArcMotionParam class to pass profile information.

  • Calls the SetMotion function to reserve a motion.

    • You can pass the via Pose in the form of a PoseArray class.

  • Calls the StartMotion function to execute the motion.

  • Calls the Wait function to wait until the motion is complete.

  • Releases the dynamically allocated memory.

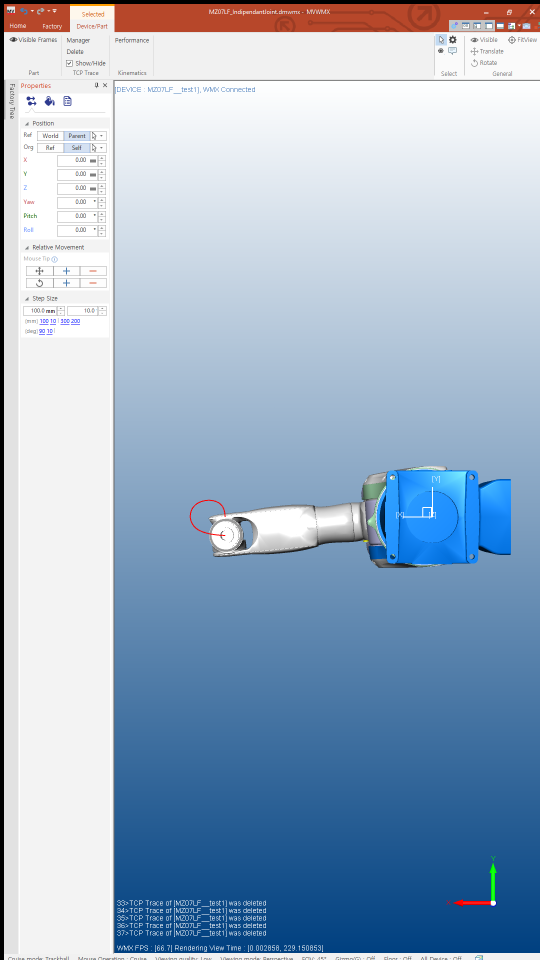

../_images/ROBOT_OPTION_DOC_TUTORIAL_MIMIC_CP_MOTION_05_SPLINE_B.png

SampleCpSplineCMotion

int SampleCpSplineCMotion(wmx3Api::RobotMotion& robot, wmx3Api::RobotMotionParam& robotMotionParam)
{
    int ret = 0;
    double distance = 50.0;
    wmx3Api::RobotStatus robotStatus;

    // Update the Robot Status(Get the current pose)
    ret = robot.UpdateRobotStatus(robotMotionParam.robotParam.robotId, robotStatus);

    wmx3Api::coordinate::PoseArray poseArray = wmx3Api::coordinate::PoseArray();
    poseArray.numPoints = 5;
    poseArray.poseArray = new wmx3Api::coordinate::CartesianPose[poseArray.numPoints];
    poseArray.poseArray[0] = wmx3Api::coordinate::CartesianPose(robotStatus.stateCommand.toolPose);
    poseArray.poseArray[1] = wmx3Api::coordinate::CartesianPose(poseArray.poseArray[0]);
    poseArray.poseArray[1].point.y += distance;
    poseArray.poseArray[2] = wmx3Api::coordinate::CartesianPose(poseArray.poseArray[1]);
    poseArray.poseArray[2].point.x += (2 * distance);
    poseArray.poseArray[3] = wmx3Api::coordinate::CartesianPose(poseArray.poseArray[2]);
    poseArray.poseArray[3].point.y -= (2 * distance);
    poseArray.poseArray[4] = wmx3Api::coordinate::CartesianPose(poseArray.poseArray[3]);
    poseArray.poseArray[4].point.x -= (2 * distance);

    // Set CP Motion
    wmx3Api::TrajectoryMotionParam::TrajectoryCSplineMotionParam trajectoryParam(robotMotionParam.profile);
    ret = robot.mKinematics.SetMotion(robotMotionParam.robotParam.robotId, trajectoryParam, poseArray);

    // Start CP Motion
    ret = robot.mKinematics.StartMotion(robotMotionParam.robotParam.robotId);

    // Wait until motion finished
    ret = robot.mKinematics.Wait(robotMotionParam.robotParam.robotId);

    // Release user-allocated memory
    delete[] poseArray.poseArray;

    return ret;
}

  • Performs a motion that smoothly passes through multiple Poses.

  • Creates a TrajectoryArcMotionParam class to pass profile information.

  • Calls the SetMotion function to reserve a motion.

    • You can pass the via Pose in the form of a PoseArray class.

  • Calls the StartMotion function to execute the motion.

  • Calls the Wait function to wait until the motion is complete.

  • Releases the dynamically allocated memory.

../_images/ROBOT_OPTION_DOC_TUTORIAL_MIMIC_CP_MOTION_06_SPLINE_C.png

main

int main(int argc, const char* argv[])
{
    int ret = 0;
    wmx3Api::WMX3Api dev;
    wmx3Api::RobotMotion robot(&dev);
    wmx3Api::RobotMotionParam robotMotionParam;
    wmx3Api::RobotStatus robotStatus;
    const double initialJointDegree[] = { 0, 0, 0, 0, -90, 0 };

    // Initialization
    ret = InitWMX(dev);
    ret = InitRobotSystem(robot, robotMotionParam);
    ret = InitRobotPose(robot, robotMotionParam, initialJointDegree);

    printf("Start CpLineMotionBaseFrame\n");
    ret = SampleCpLineMotionBaseFrame(robot, robotMotionParam);
    ret = InitRobotPose(robot, robotMotionParam, initialJointDegree);

    printf("Start CpLineMotionToolFrame\n");
    ret = SampleCpLineMotionToolFrame(robot, robotMotionParam);
    ret = InitRobotPose(robot, robotMotionParam, initialJointDegree);

    printf("Start CpArcMotionType3Points\n");
    ret = SampleCpArcMotionType3Points(robot, robotMotionParam);
    ret = InitRobotPose(robot, robotMotionParam, initialJointDegree);

    printf("Start CpArcMotionTypePath\n");
    ret = SampleCpArcMotionTypePath(robot, robotMotionParam);
    ret = InitRobotPose(robot, robotMotionParam, initialJointDegree);

    printf("Start CpSplineBMotion\n");
    ret = SampleCpSplineBMotion(robot, robotMotionParam);
    ret = InitRobotPose(robot, robotMotionParam, initialJointDegree);

    printf("Start CpSplineCMotion\n");
    ret = SampleCpSplineCMotion(robot, robotMotionParam);
    ret = InitRobotPose(robot, robotMotionParam, initialJointDegree);

    printf("End of program.\n");

    return 0;
}

  • Calls the previously declared/defined main function.
